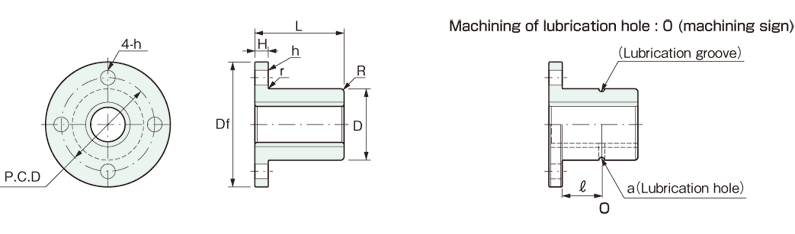

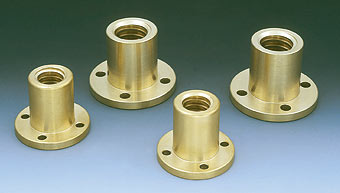

YNF-R(L) Nut with flange
| Material | Tolerance grade |
| Bronze casting | 7H |
- We use BC6 as the material of nut in order to satisfy enough the function (abrasion resistance and low coefficient of friction) of sliding conduction.
- The right-hand screw is YNF-R type
- The left-hand screw is YNF-L type
- TM standard
