No-oil-supply bush

HOME > Products introduction > Standard parts (YSK brand) > No-oil-supply bush

The no-oil-supply bush is metal based bearing which used high strength brass casting （HBｓC3C）and solid lubricant. On the place, where oil supply is difficult structurally and maintenance is impossible, the no-oil-supply bush is superior in sliding and lubricity under the condition of no-oil-supply and maintenance free.

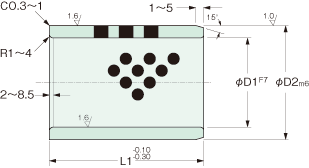

Y-50A (Straight type)

Form	Inner diameter　D1	Tolerance　D1F7	Outer diameter　D2	Tolerance　D2m6	Total length　L1
Y-50A-202810	20	+0.041 +0.020	28	+0.021 +0.008	10
Y-50A-202812					12
Y-50A-202815					15
Y-50A-202816					16
Y-50A-202819					19
Y-50A-202820					20
Y-50A-202825					25
Y-50A-202830					30
Y-50A-202835					35
Y-50A-202840					40
Y-50A-202850					50
Y-50A-203016			30		16
Y-50A-203020					20
Y-50A-203025					25
Y-50A-203030					30
Y-50A-203035					35
Y-50A-203040					40
Y-50A-253312	25		33	+0.025 +0.009	12
Y-50A-253315					15
Y-50A-253316					16
Y-50A-253320					20
Y-50A-253325					25
Y-50A-253330					30
Y-50A-253335					35
Y-50A-253340					40
Y-50A-253350					50
Y-50A-253360					60
Y-50A-253512			35		12
Y-50A-253515					15
Y-50A-253516					16
Y-50A-253520					20
Y-50A-253525					25
Y-50A-253530					30
Y-50A-253535					35
Y-50A-253540					40
Y-50A-253550					50
Y-50A-303812	30		38		12
Y-50A-303815					15
Y-50A-303820					20
Y-50A-303825					25
Y-50A-303830					30
Y-50A-303835					35
Y-50A-303840					40
Y-50A-303850					50
Y-50A-303860					60
Y-50A-354420	35	+0.050 +0.025	44		20
Y-50A-354425					25
Y-50A-354430					30
Y-50A-354435					35
Y-50A-354440					40
Y-50A-354450					50
Y-50A-354460					60
Y-50A-405020	40		50		20
Y-50A-405025					25
Y-50A-405030					30
Y-50A-405035					35
Y-50A-405040					40
Y-50A-405050					50
Y-50A-405060					60
Y-50A-405070					70
Y-50A-405080					80
Y-50A-506230	50		62	+0.030 +0.011	30
Y-50A-506235					35
Y-50A-506240					40
Y-50A-506250					50
Y-50A-506260					60
Y-50A-506570			65		70
Y-50A-506580			65		80
Y-50A-607550	60	+0.060 +0.030	75		50
Y-50A-607560					60
Y-50A-607570					70
Y-50A-607580					80
Y-50A-809660	80		96	+0.035 +0.013	60
Y-50A-809670					70
Y-50A-809680					80
Y-50A-10012080	100	+0.071 +0.036	120		80
Y-50A-100120100	100	+0.071 +0.036	120		100

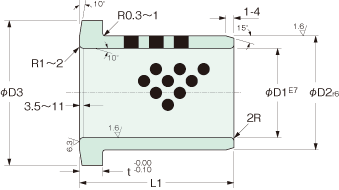

Y-50AF (Flange type)

Form	Inner diameter　D1	Tolerance　D1F7	Outer diameter　D2	Tolerance　D2m6	Flange diameter　D3	Collar thickness　t	Total length　L1
Y-50AF-2015	20	+0.061 +0.040	30	+0.041 +0.028	40	3	15
Y-50AF-2020						5	20
Y-50AF-2025							25
Y-50AF-2030							30
Y-50AF-2035							35
Y-50AF-2040				+0.050 +0.034			40
Y-50AF-2515	25		35		45		15
Y-50AF-2520							20
Y-50AF-2525							25
Y-50AF-2530							30
Y-50AF-2535							35
Y-50AF-2540							40
Y-50AF-2550							50
Y-50AF-3020	30		40		50		20
Y-50AF-3025							25
Y-50AF-3030							30
Y-50AF-3035							35
Y-50AF-3040							40
Y-50AF-3050							50
Y-50AF-3520	35	+0.075 +0.050	45		60	3	20
Y-50AF-3525						5	25
Y-50AF-3530							30
Y-50AF-3535							35
Y-50AF-3540							40
Y-50AF-3550							50
Y-50AF-4020	40		50		65		20
Y-50AF-4025							25
Y-50AF-4030							30
Y-50AF-4035							35
Y-50AF-4040							40
Y-50AF-4050							50
Y-50AF-5030	50		60	+0.060 +0.041	75		30
Y-50AF-5035							35
Y-50AF-5040							40
Y-50AF-5050							50
Y-50AF-5060							60

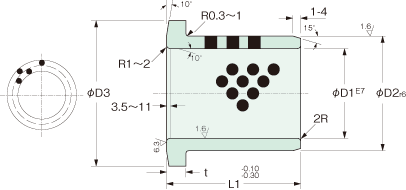

Y-50AFG (Thrust type)

Form	Inner diameter　D1	Tolerance　D1F7	Outer diameter　D2	Tolerance　D2m6	Flange diameter　D3	Tolerance　D3	Collar thickness　t	Tolerance　t	Total length　L1
Y-50AFG-2020	20	+0.061 +0.041	28	+0.041 +0.028	45	0 -0.03	5	0 -0.03	20
Y-50AFG-2025	20		28	+0.041 +0.028	45				25
Y-50AFG-2520	25		33	+0.050 +0.034	50				20
Y-50AFG-2525	25		33		50				25
Y-50AFG-3025	30		38		55				25
Y-50AFG-3035	30		38		55				35
Y-50AFG-3525	35	+0.075 +0.050	44		65				25
Y-50AFG-3535	35		44		65				35
Y-50AFG-4027（30）	40		50		50		7		27
Y-50AFG-4037（40）									37
Y-50AFG-4047（50）									47
Y-50AFG-5038（40）	50		60	+0.060 +0.041	62		8	0 -0.034	38
Y-50AFG-5048（50）									48
Y-50AFG-5058（60）									58

Example of special product
