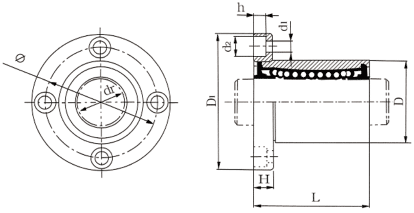

YF-UU Round flange short type (end face)
It’s suited to the specification which is compact and no space. The surface is treated by electro less nickel plating then the antirust effect is improved.
| Composition of part material | |
|---|---|
| External cylinder | SUJ2 |
| Holder | Resin (POM;Polyoxymethylene) |
| Ball | SUJ2 |
| Ring seal | Nitrile rubber |
With electro less nickel plating

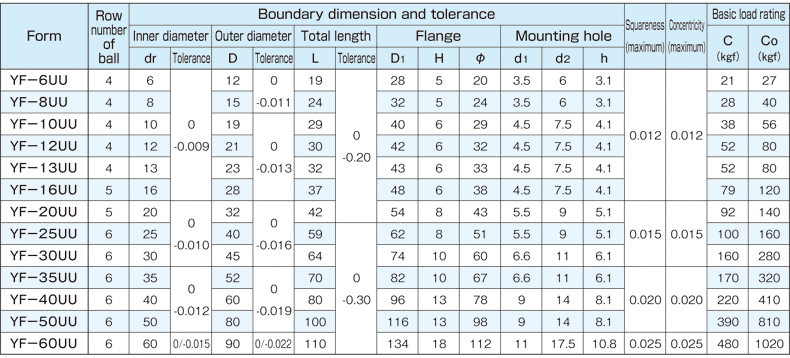

YF-UU Specification data
