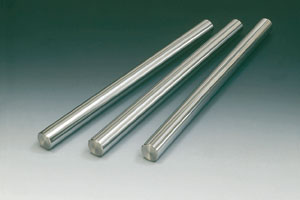

	The stainless linear shaft is used as guide such as straight-line back-and-forth motion mechanism. Therefore linear shafts should have superior abrasion resistance and are high-precision products that satisfy the standard for geometrical tolerance such as cylindricity and circularity. Please use our linear shaft, which we proud of it's high precision, by all means.



	・We use martensitic stainless steel QPD5 (equivalent of SUS440C) "※QPD5 is trade name of steel material which SANYO SPECIAL STEEL Co., Ltd. ・has developed and sells.". ・It has superior corrosion resistance, abrasion resistance and rigidity

If you click the machining method or product model of the shafts of below, each detail pages will be shown.Please click your desired products.

形式	形状	外径
YSSAA	Straight	φ3〜φ50
YSSBA	One end tapped	φ4〜φ50
YSSBB	Both ends tapped	φ4〜φ50
YSSCA	One end threaded	φ3〜φ50
YSSCC	Both ends threaded	φ3〜φ50
YSSCB	One end threaded One end tapped	φ4〜φ50
YSSDA	One end stepped	φ3〜φ50
YSSDD	Both ends stepped	φ3〜φ50
YSSDB	One end stepped One end tapped	φ4〜φ50
YSSDC	One end stepped One end threaded	φ3〜φ50
YSSEA	one end stepped and tapped	φ8〜φ50
YSSEE	Both ends stepped and tapped	φ8〜φ50
YSSEB	One end stepped and tapped One end tapped	φ8〜φ50
YSSEC	One end stepped and tapped One end threaded	φ8〜φ50
YSSED	One end stepped and tapped One end stepped	φ8〜φ50
YSSFA	Retaining ring groove on one end	φ3〜φ30
YSSFF	Retaining ring grooves on both ends	φ3〜φ30
YSSGA	One end stepped and grooved	φ6〜φ50
YSSHA	Plate grooved	φ6〜φ50
YSSJA	One end V grooved	φ6〜φ50
YSSJJ	Both ends V grooved	φ6〜φ50
YSSKK	Tapped on generating line	φ10〜φ50
