Y-LUU Long type linear bush (resin holder)
It’s standard linear bush. The material of the holder is resin and it’s available to heat-resistance temperature 80 degree. You can select rubber seal type also.
| Composition of part material | |
|---|---|
| External cylinder | SUJ2 |
| Holder | Resin (POM;Polyoxymethylene) |
| Ball | SUJ2 |
| Ring seal | Nitrile rubber |
| Stop ring | Spring steel |

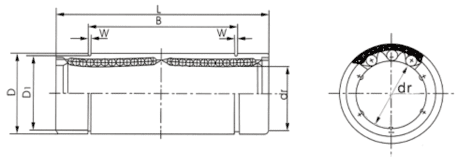

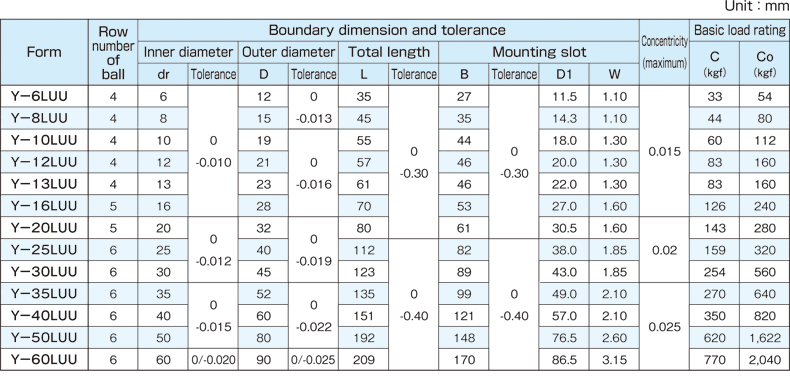

Y-LUU Specification data
