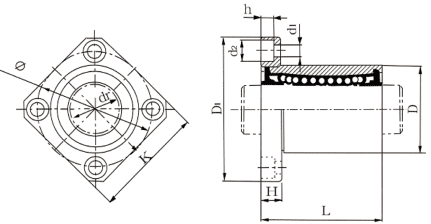

YK-UU Square flange short type (end face)

It’s suited to the specification which is compact and no space. The surface is treated by electro less nickel plating then the antirust effect is improved.

YSAA リニアシャフト ストレート
Composition of part material
External cylinder SUJ2
Holder Resin (POM;Polyoxymethylene)
Ball SUJ2
Ring seal Nitrile rubber

With electro less nickel plating

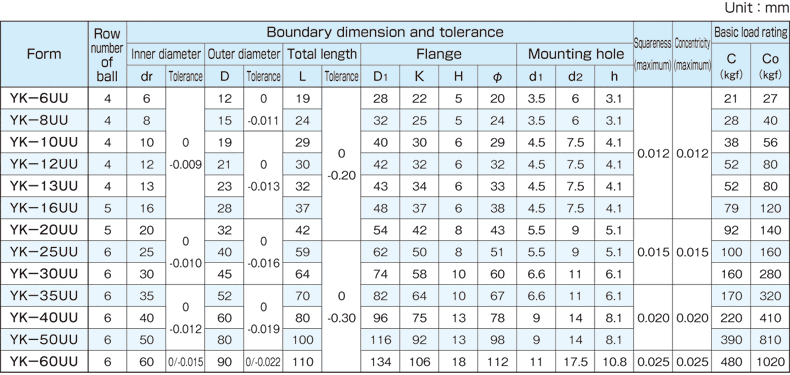

YK-UU Specification data

AR DATA
