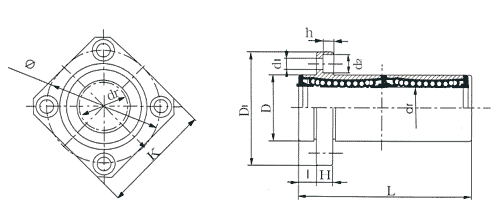

YKP-LUU Square flange long type (spigot joint)
The two resin holders are integrated into that, and then the allowance load and moment increase much more than short type. The surface has electro less nickel plating.
| Composition of part material | |
|---|---|
| External cylinder | SUJ2 |
| Holder | Resin (POM;Polyoxymethylene) |
| Ball | SUJ2 |
| Ring seal | Nitrile rubber |
With electro less nickel plating

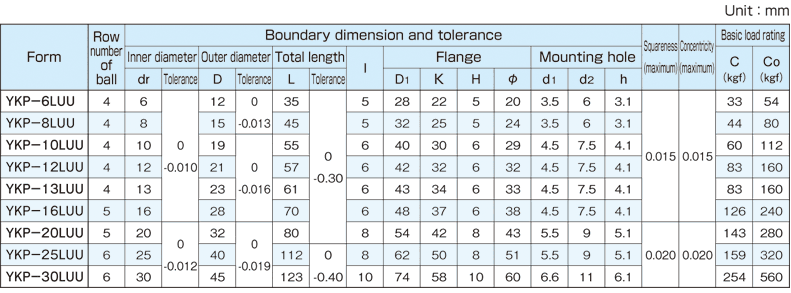

YKP-LUU Specification data
